Electrial Part Prep

BMS & Screen

Time to mutilate some parts! Due to the tight tolerances in the case we have to do a small amount of trimming to get everything to fit nicely. You will need a hacksaw and a measuring tool, ruler is fine but I used a vernier caliper.

---

Let's Mutilate Some Parts!

Screen AUX before modification.

Snip off the top of the aux port as so.

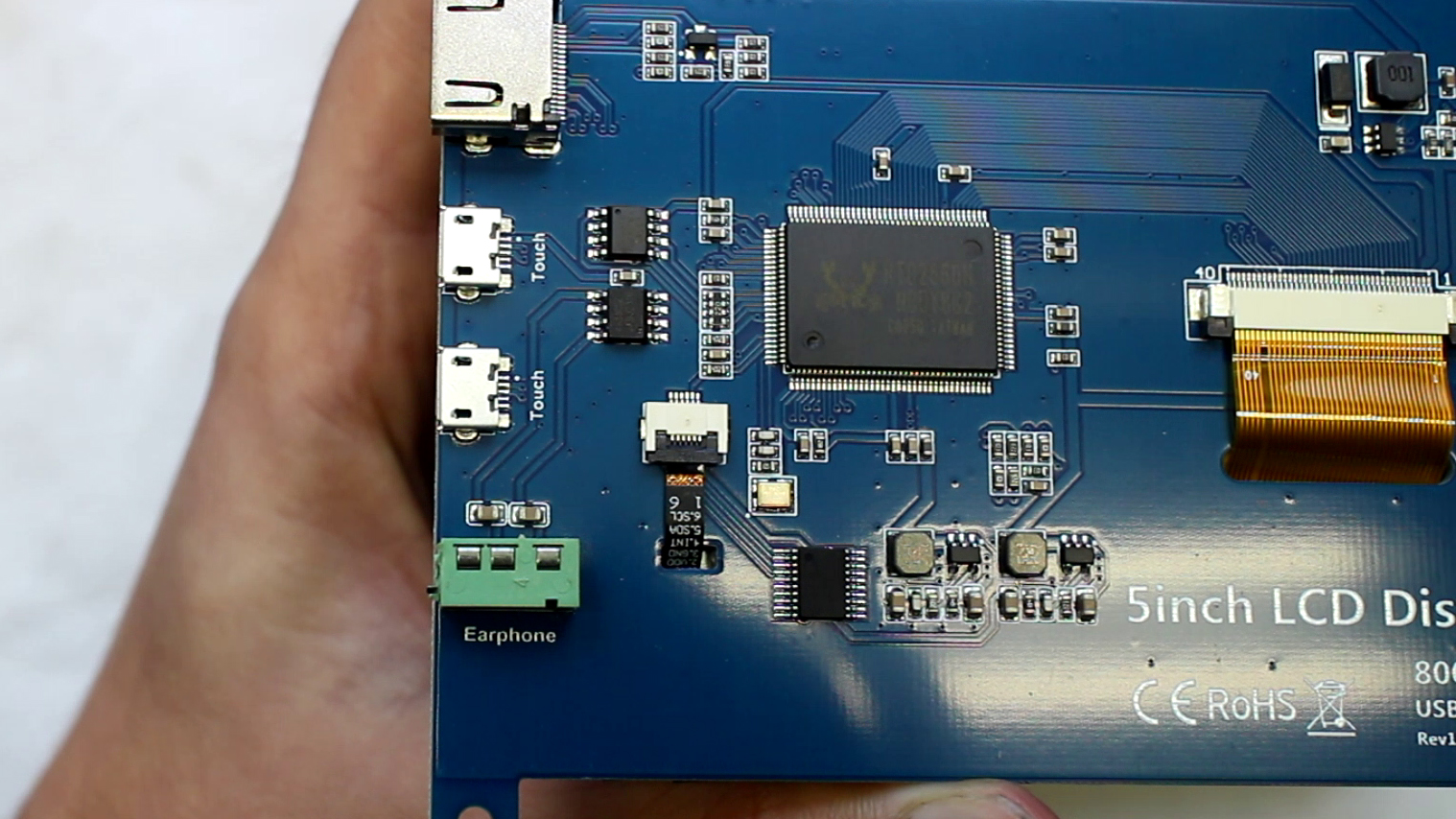

AUX port after modification.

---

Screen Tab Filing

We also have to file the bottom tabs of the screen down slightly, no need to go too crazy here.

---

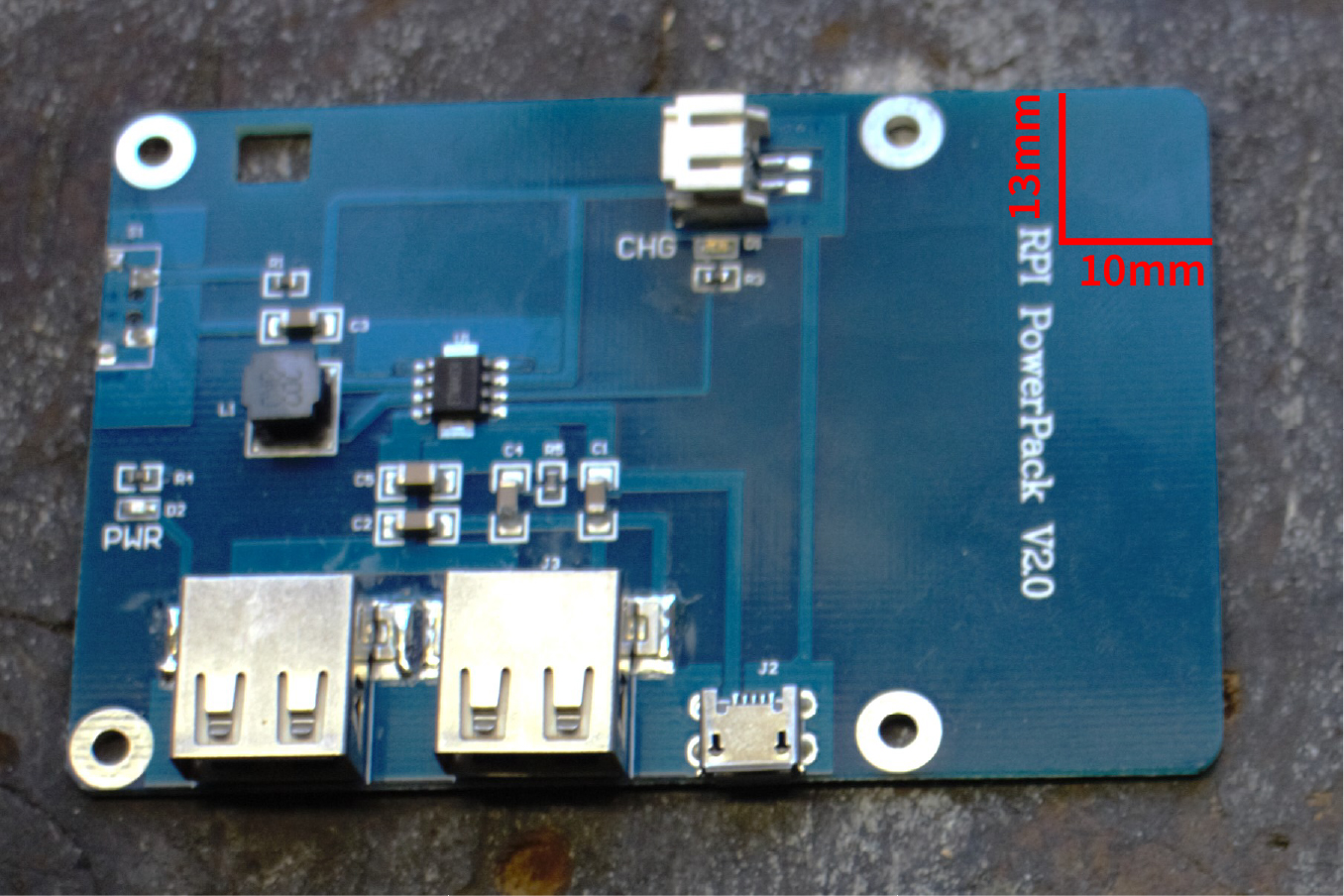

BMS Modification - Trimming Corner

The BMS (battery management system) PCB needs to be trimmed to allow space for the usb hub. I know how it will feel hacking at a pcb! But don’t worry there is no circuitry on the part of the chip we will cut.

Cut 13mm x 10mm

---

BMS Switch removal

We will be re-routing the on/off switch to be accessible from the outside of the console, so we have to remove the one soldered onto the BMS PCB.

---
